CORE1262-HF LORA MODULE, SPI, 850-930MHZ

All pictures are for illustrative purposes only.

PID# 20855

20,00 CA$
Free shipping: On orders over $120 within BC
Quantité

Request a large quantity quote

Description

  • The new generation SX1262 has higher power efficiency and longer transmission distance than the SX1278
  • Suitable for Sub-GHz band, combined with the gateway, quick connect to cloud servers to build LoRa/LoRaWAN network
  • Suitable for the application scenarios such as industry, smart home and data acquisition
  • Adopts high-quality components such as TCXO for working stably under harsh conditions
  • Comes with development resources and manual (examples for Raspberry Pi Pico/STM32)
Specifications
VERSIONCORE1262-HF
RF CHIP SX1262
FREQUENCY RANGE HF: 850 ~ 930MHz
MODULATION LoRa/(G)FSK
DATA RATE 0.018~62.5Kbps (LoRa)
0.6~300Kbps ((G)FSK)
EMIT POWER 22dBm@3.3V
SPREADIND FACTOR SF5 ~ SF12
OPERATING VOLTAGE 3.3V
MODULE POWER CONSUMPTION emitting current: 45mA@14dBm
receiving current: 5.3mA@125KHz
COMMUNICATION BUS SPI
OPERATING TEMPERATURE 0 ~ 85℃
CONNECTOR castellated edge / solder holes, pitch 2.54mm
DIMENSIONS 21.00×52.00mm

Pinout Definition

Application Example

Industrial Environment, Smart Home, And Data Acquisition...

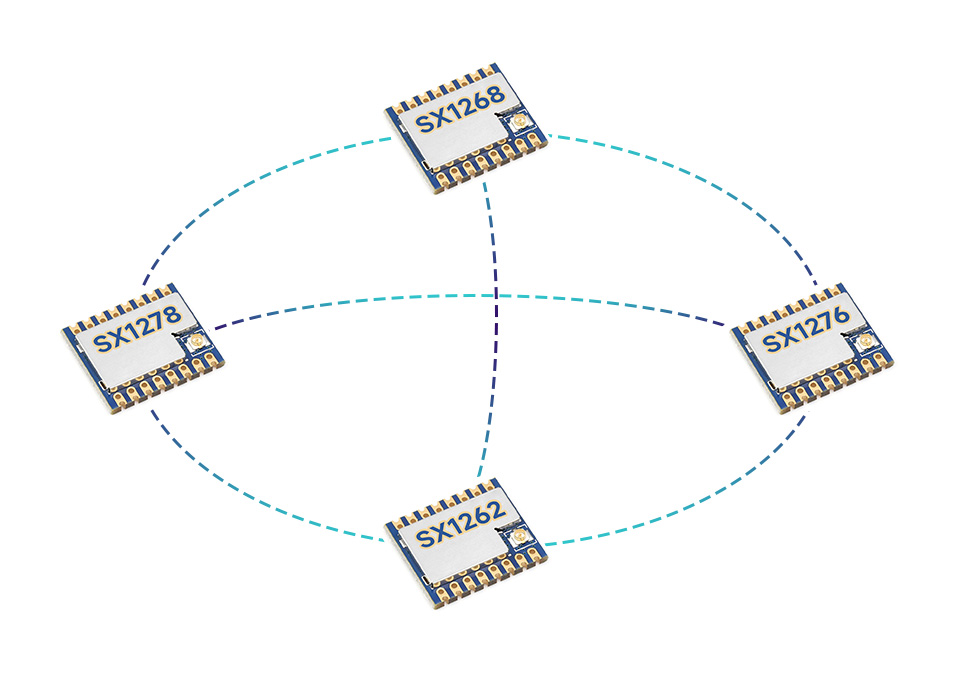

SX126x Can Communicate With SX127x

Both SX1262 and SX1268 can communicate with SX1276 and SX1278, which are still compatible with previous LoRa products after upgrading, and provides higher power efficiency and longer transmission distance.

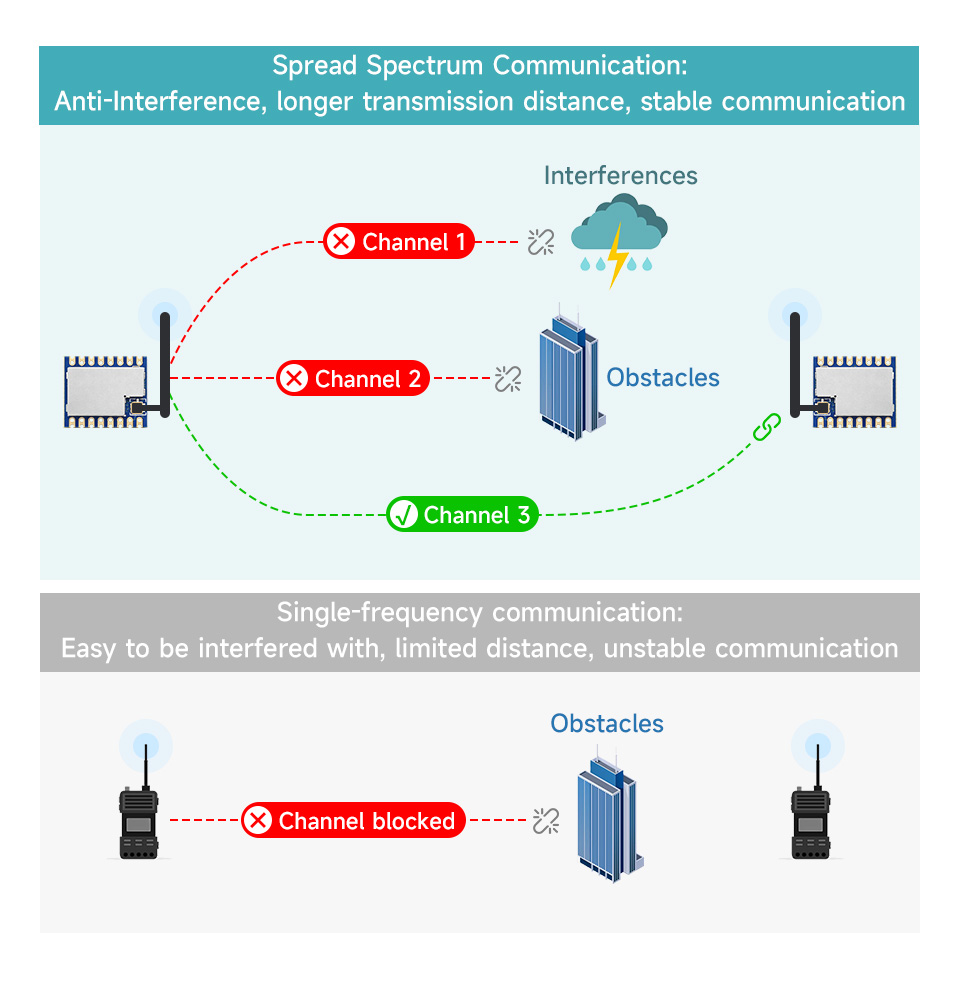

The New Generation LoRa Spread Spectrum Technology

Compared to traditional communication, LoRa Chirp Spread Spectrum (CSS) and Frequency Hopping Spread Spectrum (FHSS) technologies greatly improve the performance of long-range communication and anti-interference, widely used in military and industrial communication fields.

High-Quality Components

For Stable Performance Of Communication Module

Original chip
SX1262



Industrial grade crystal oscillator
-40 ~ 85℃

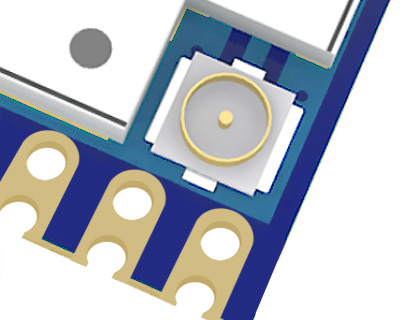

Two connection methods for Antenna
IPEX / Castellated hole



Professional shield
Anti-interference & ESD protection

Temperature Compensated Crystal Oscillator

Ensure The Long Time Working Of The Module Without Frequency Shift At The High
And Low Temperature Environment Of Industry

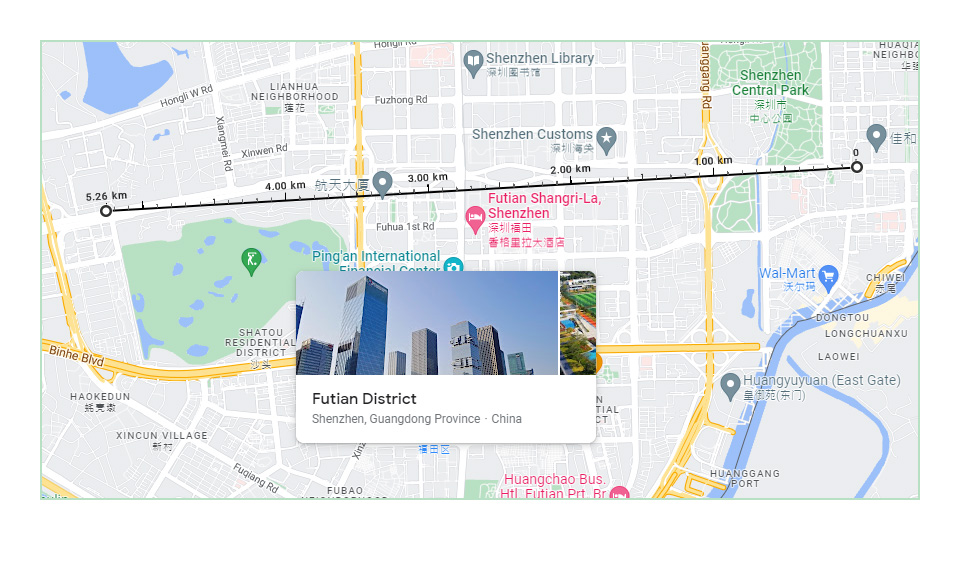

Actual Test Environment

Sunny Weather With An Open Field, 22dBm Emit Power, Airspeed 0.3kbps,
6dBi Magnetic CB Antenna, 3m Antenna Height, 5km Distance
