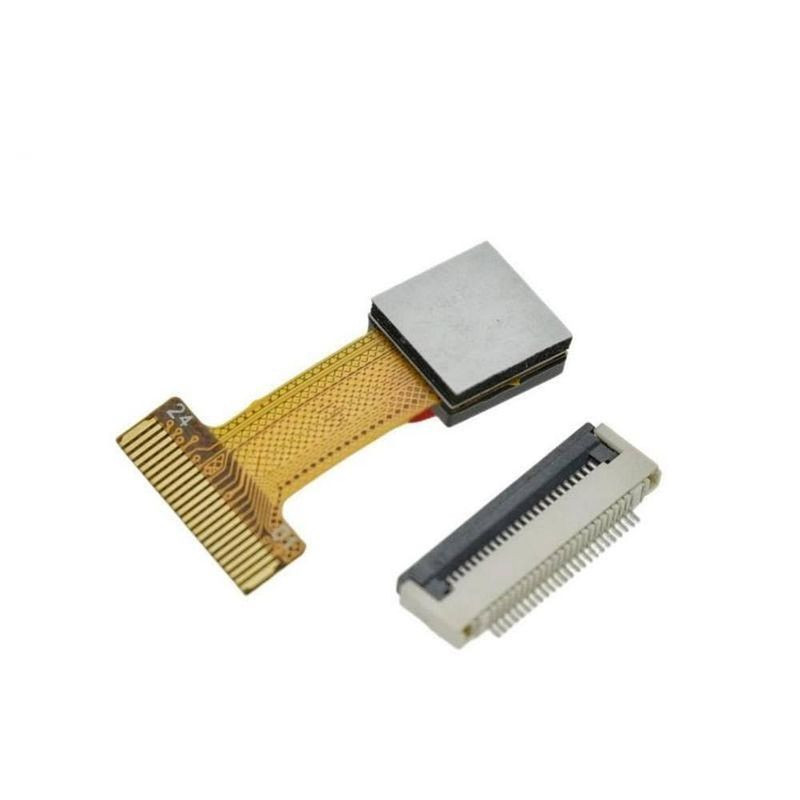

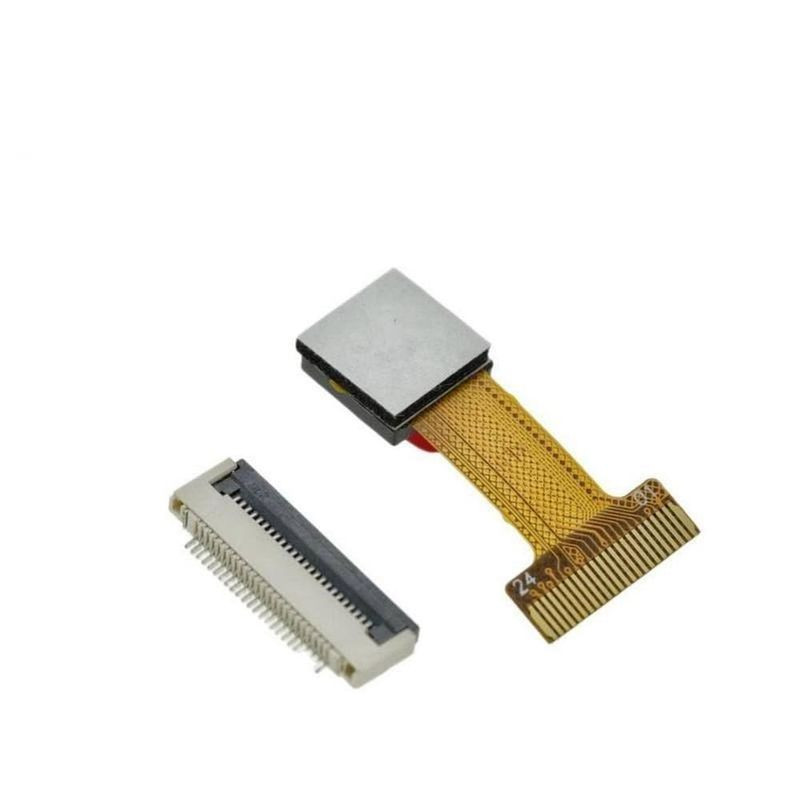

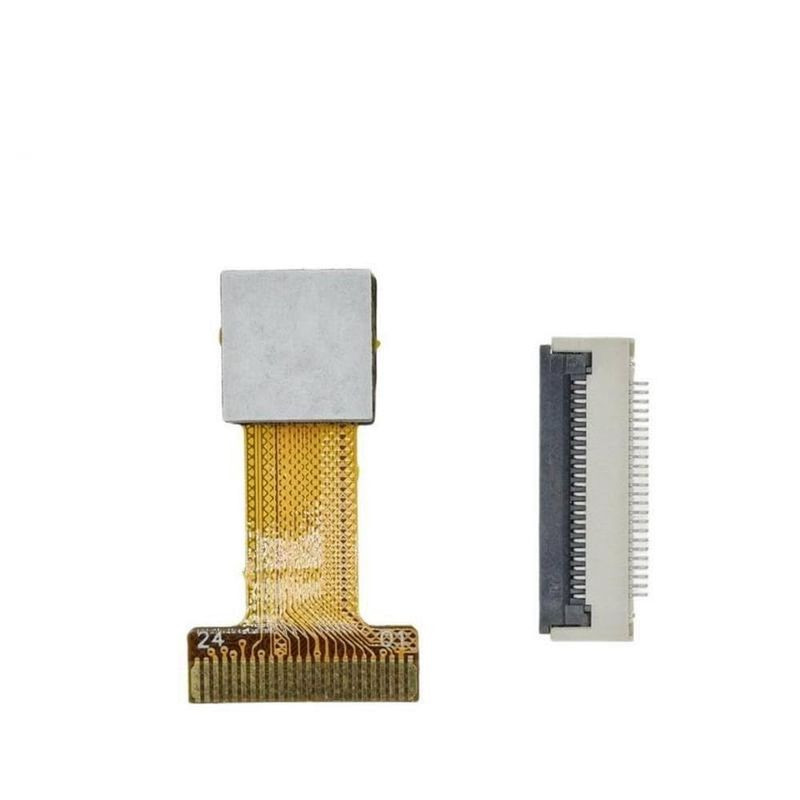

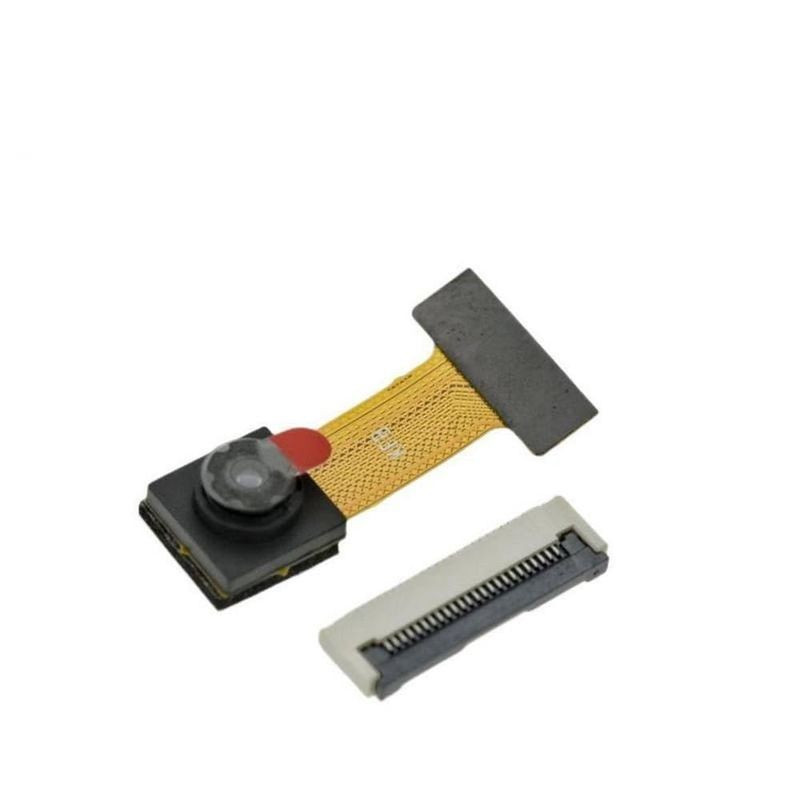

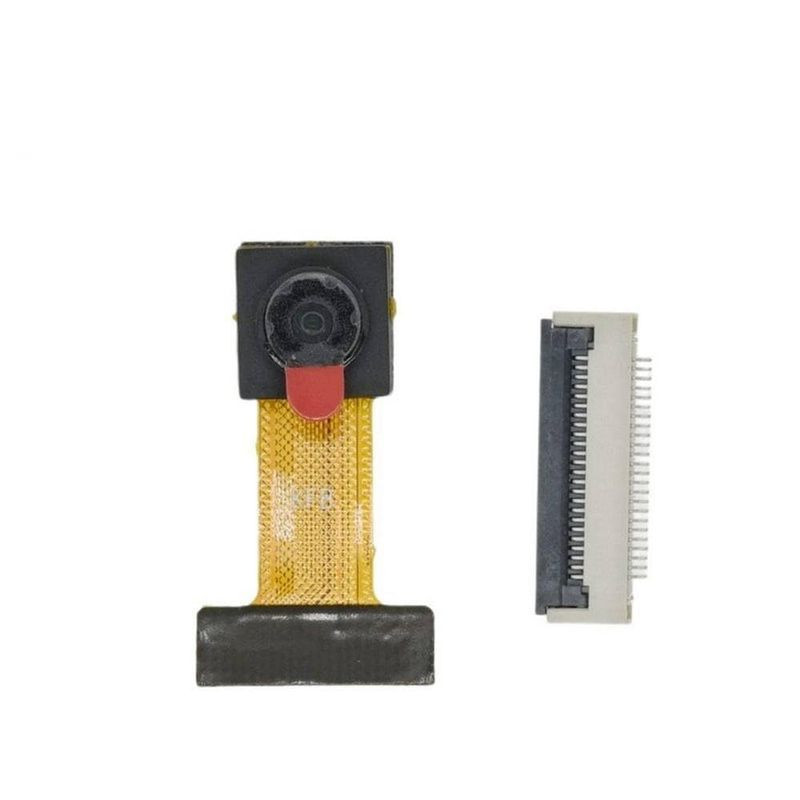

CAMERA, OV7670, 640X480, 0.3MP, 3.3V, 24P

All pictures are for illustrative purposes only.

PID# 188331

5,00 CA$
Free shipping: On orders over $120 within BC
Quantité

Request a large quantity quote

Description

Photosensitive array 640X480

IO voltage 2.5V to 3.0V (internal LDO provides 1.8V power to the core)

Power consumption Working 60mW/15fps VGAYUV

Sleep <20μA

Temperature operation -30℃ to 70℃

Stable operation 0℃ to 50℃

Output format (8-bit) ? YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data

Optical size 1/6"

Field of view 67°

Frame rate 30fps VGA

Sensitivity 1.3V/(Lux-sec)

Signal-to-noise ratio 46 dB

Dynamic range 52 dB

Scan mode Progressive

Electronic exposure 1 line to 510 lines

Pixel area 3.6 μm x 3.6 μm

Dark current 12 mV/s at 60℃
