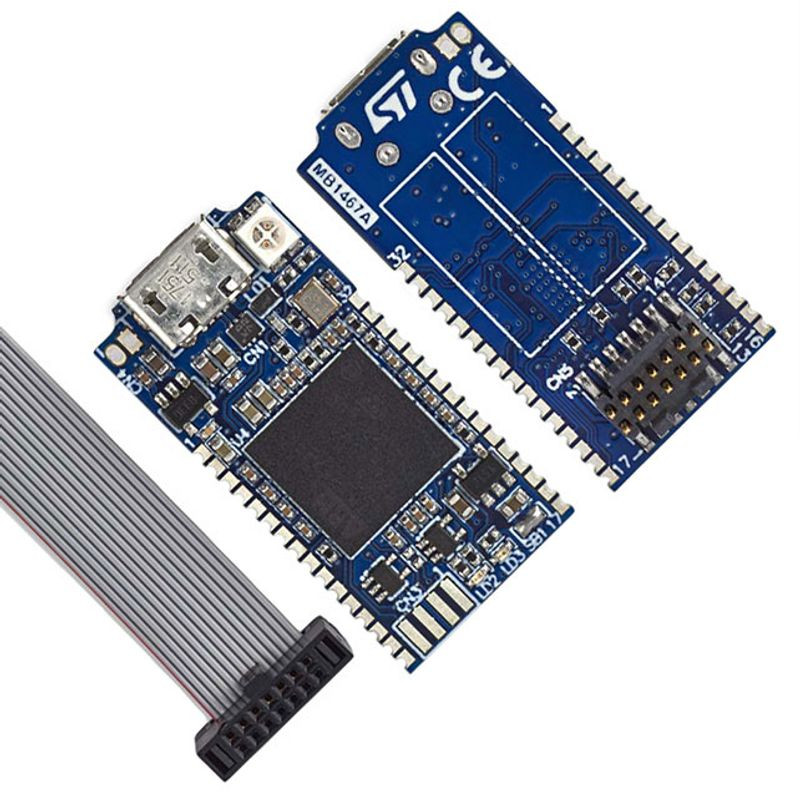

STLINK-V3MINI, USB PROGRAMMER + DEBUGGER FOR STM32

All pictures are for illustrative purposes only.

PID# 18051

25,00 CA$
Rupture de stock
Quantité

Request a large quantity quote

Description

  • The STLINK-V3MINI is a stand-alone debugging and programming mini probe for STM32 microcontrollers.
  • The JTAG/SWD interfaces are used to communicate with any STM32 microcontroller located on an application board.
  • The STLINK-V3MINI also provides a Virtual COM port interface allowing the host PC to communicate with the target microcontroller through one UART.
  • The STLINK-V3MINI is a portable version, easy-to-use debugger//programmer including STDC14 interface with its flat cable.

All features

  1. Stand-alone probe
  2. Approximately 15 x 30 mm high-density integration PCB
  3. Delivered with 1.27 mm pitch STDC14 debug connector and STDC14 to STDC14 flat cable
  4. Self-powered through a USB connector (Micro-B)
  5. USB 2.0 high-speed compatible interface
  6. Direct firmware update support (DFU)
  7. JTAG / serial wire debugging (SWD) specific features:
  8. 3 V to 3.6 V application voltage support and 5 V tolerant inputs
  9. JTAG communication support
  10. SWD and serial wire viewer (SWV) communication support
  11. Virtual COM port (VCP) specific features:
  12. 3 V to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs
  13. VCP frequency up to 15 MHz
  14. Drag-and-drop Flash programming
  15. Two color LEDs: communication, power
  16. Includes STDC14 signals protection
