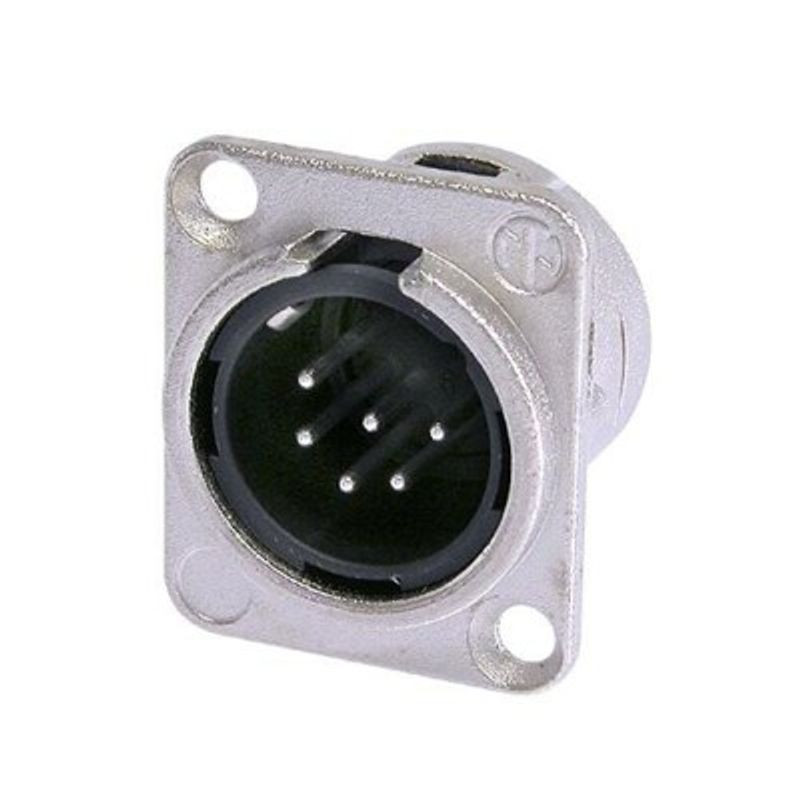

NEUTRIK, XLR 6 POLE MALE RECEPTACLE, SOLDER, NC6MD-L-1

All pictures are for illustrative purposes only.

PID# 161454

18,00 CA$
Free shipping: On orders over $120 within BC
Quantité

Request a large quantity quote

Description

6 pole male receptacle, solder cups, Nickel housing, silver contacts

Universal D-size metal body XLR panel mount series. UL recognized component.

Features & Benefits

Robust "D" metal shell

Standardized D sized 24 mm panel cutout

Solder cups on 3 - 7 pole version

Technical Information

Product

Title: NC6MD-L-1

Connection Type: XLR

Gender: male

Electrical

Capacitance between contacts: ≤ 7 pF

Contact resistance: ≤ 5 mΩ

Dielectric strength: 1,5 kVdc

Insulation resistance: > 10 GΩ (initial)

Rated current per contact: 7,5 A

Rated voltage: < 50 V

Mechanical

Insertion force: ≤ 20 N

Withdrawal force: ≤ 20 N

Lifetime: > 1000 mating cycles

Wiresize: max. 1.0 mm²

Wiresize: max. 18 AWG

Wiring: Solder contacts

Locking device: Latch lock

Chassis shape: D

Material

Contact plating: 2 µm Ag over 2 µm Ni

Contacts: Brass (CuZn39Pb3)

Insert: Polyamide (PA 6.6 30 % GR)

Locking element: Steel Ck67

Shell: Zinc diecast (ZnAl4Cu1)

Shell plating: Nickel

Environmental

Approvals: UL

Flammability: UL 94 HB

Standard compliance: IEC 61076-2-103

Protection class: IP 40

Solderability: Complies with IEC 68-2-20

Temperature range: -30 °C to +80 °C
