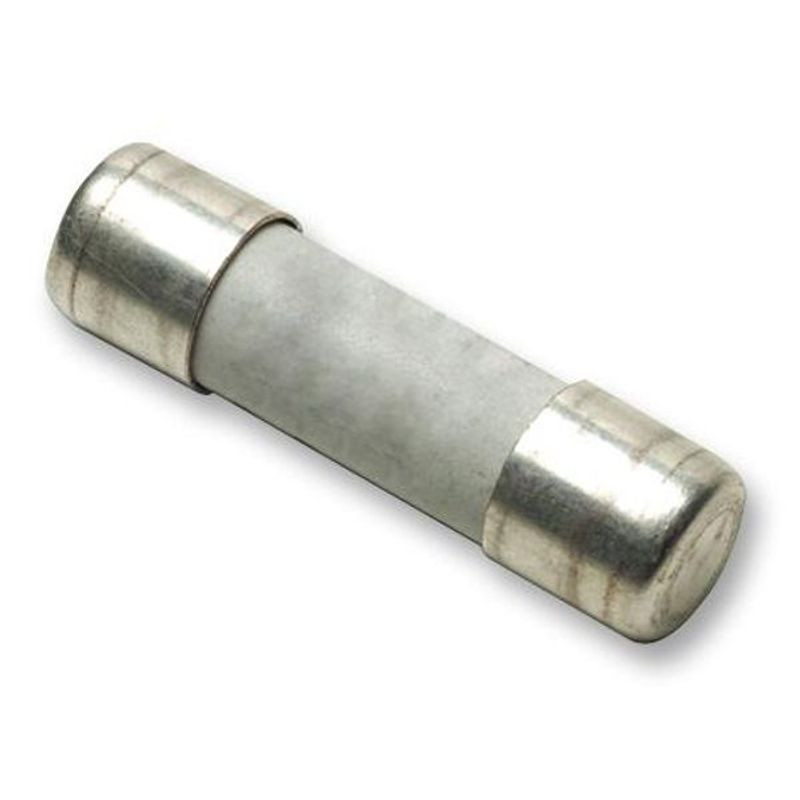

FUSE, CERAMIC, FAST, 6.3A 5X20MM

All pictures are for illustrative purposes only.

PID# 161435

2,25 CA$
Free shipping: On orders over $120 within BC
Variants:
2A
3.15A
5A
6.3A
10A
12.5A
16A
20A
Quantité

Request a large quantity quote

Description

Rated Voltage: 250 VAC

Rated current: 6.3 A

Breaking Capacity: 500 A - 1500 A

Characteristic: Quick-Acting F

Admissible Ambient Temp.: -55 °C to 125 °C

Climatic Category: 55/125/21 acc. to IEC 60068-1

Material: Tube: Ceramics

Material: Endcaps: Nickel-Plated Copper Alloy

Unit Weight: 1.18 g

Storage Conditions: 0 °C to 60 °C, max. 70% r.h.

Specifications

23 Produits

Features

Voltage (V) 250V
Fuse Series SP
Fuse Size 5x20
Amperage 6.3A
Approval UL Approval
Approval CSA Approved
Approval RoHS Compliant
Approval C RU Approval
Approval CCC Marked
Approval IEC Rated
Approval CE Listed
Approval REACH
Approval VDE
Fuse Blow Time Fast Blow
