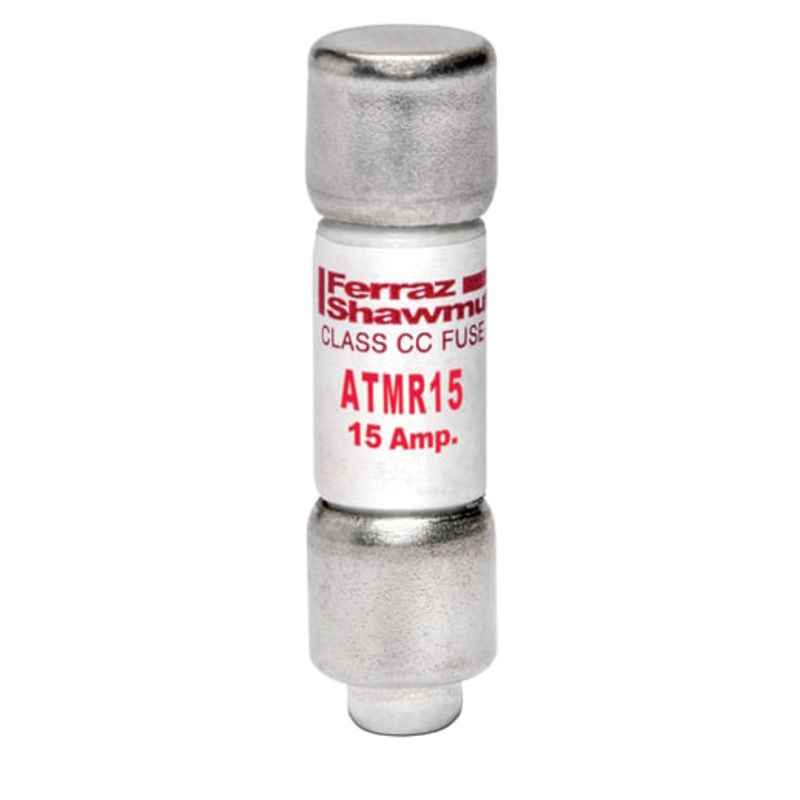

FUSE, MERSEN ATMR15 CARTRIDGE 600V 15A CLASS CC FAST ACTING

All pictures are for illustrative purposes only.

PID# 161410

25,00 CA$
Rupture de stock
Variants:
1/2A
1A
2A
3A
5A
10A
15A
20A
Quantité

Request a large quantity quote

Description

Amp-Trap ATMR fast-acting fuses are the smallest dimension 600V fuses suitable for branch-circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR's rejection dimensions prevent substitution by lesser rated fuses. These fast-acting fuses give current-limiting protection to general circuits.

Datasheet

Specifications

Features

Voltage (V) 600V
Fuse Series ATMR
Fuse Size 10x38mm
Amperage 15A
Approval UL Approval
Approval CSA Approved
Approval RoHS Compliant
Fuse Blow Time Fast Blow
