NON-DIMMABLE MINI LED DRIVER, 24V 0.5A 12W IP67

All pictures are for illustrative purposes only.

PID# 161358

32,00 CA$
Free shipping: On orders over $120 within BC
Variants:
12V 1A
24V 0.5A
Quantité

Request a large quantity quote

Description

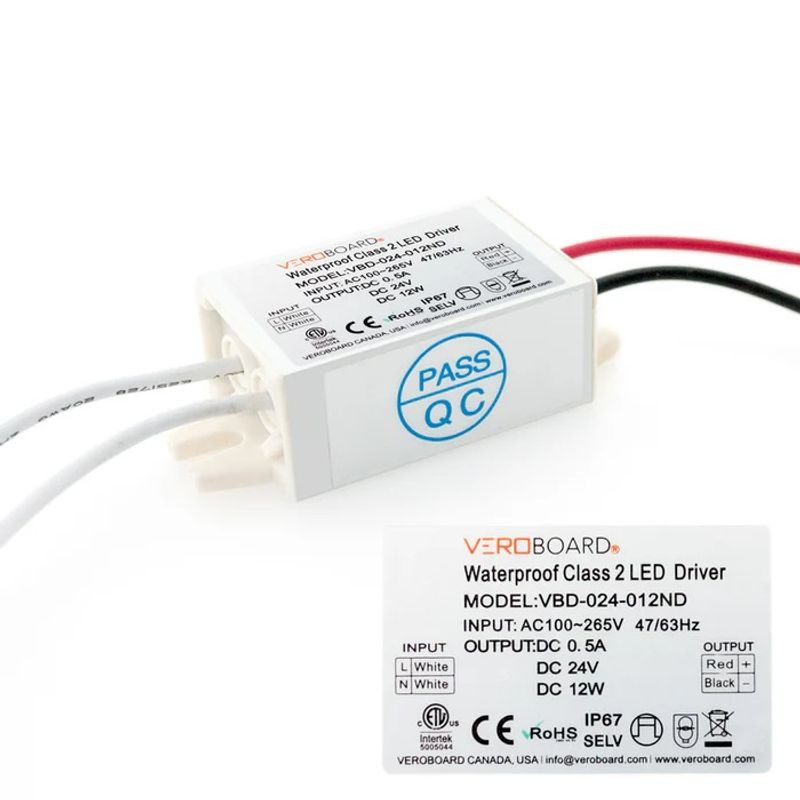

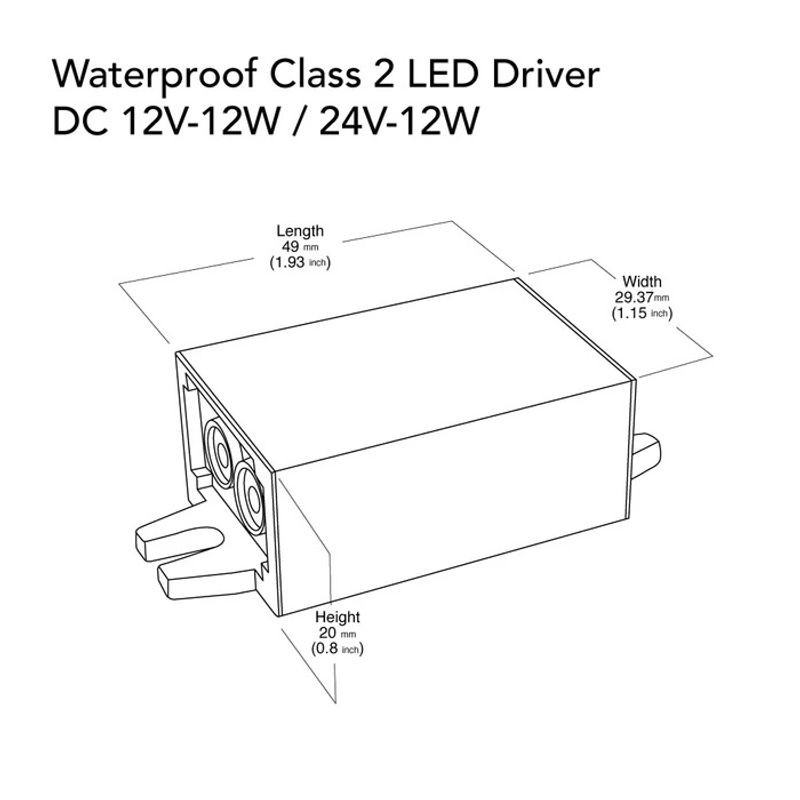

The VBD-024-012ND is a non-dimmable mini LED driver designed to convert high voltage AC power to low voltage DC power suitable for driving LED lights. It has an input voltage range of 100-265V AC and an output voltage of 24V DC, with a maximum load of 12W. The input frequency range is 47-63 Hz, and the output current is 0.5A. The driver has a hardwire wiring/housing, and its dimensions are 49 x 29.3 x 20mm (1.9 x 1.1 x 0.7in).

The driver is rated IP67, which means it is suitable for use in dry, damp, and wet locations. It has class certification of Class 2, which is a safety standard for low voltage power sources. The VBD-024-012ND LED driver has obtained CE, ETL, and RoHS certifications.

Veroboard VBD-024-012ND, 24V, 12W, Constant Voltage Non-Dimming LED Driver.

Specifications

6 Produits

Features

Voltage (V) 24V
IP Rating IP67
Amperage 0.5A
Transformer Class Class 2 Power Supply
