RELAY, IDEC, 24VAC, 12A, SPDT, RJ1S-CL-A24

All pictures are for illustrative purposes only.

PID# 160731

16,50 CA$
Free shipping: On orders over $120 within BC
Quantité

Request a large quantity quote

Description

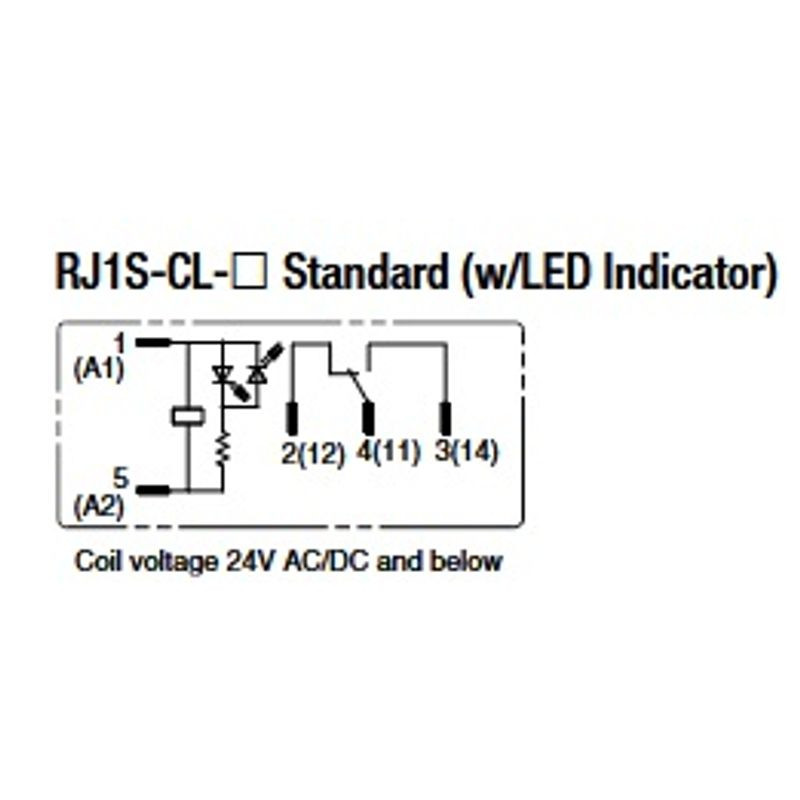

The RJ1S-CL-A24 is a general-purpose Power Relay with AC coil. This RJ-series power relay has SPDT AgNi alloy contact with indicator light. It uses a unique light guide to give a brighter and more noticeable status indicator from multiple directions.
  • Excellent electrical and mechanical life
  • Non-polarized LED indicator
  • 200K Cycles at full resistive load and 50 million cycles at no load
  • -40 to 70°C Operating temperature range

Applications

Industrial

Key Features:

Ideal for space saving application

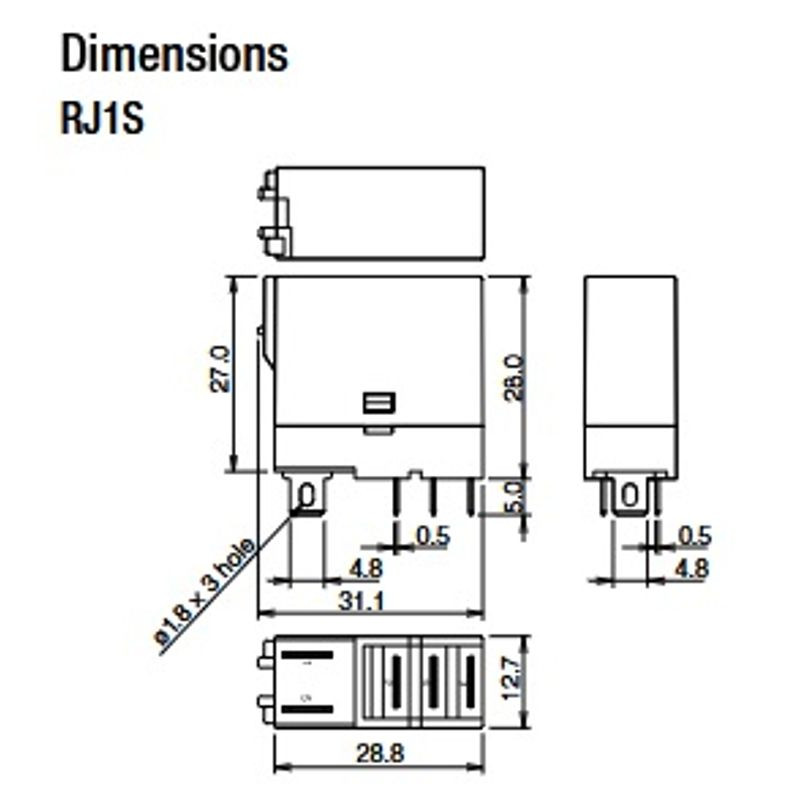

Compact size: 12.7mm width

 SPDT

Up to 16A rated contacts

Electrical life: 200,000 cycles (AC Load) & 100,000 cycles (DC Load)

Mechanical life: 30 million cycles (AC coil)

Highly visible Indicator LED using IDEC's unique light guide design

RoHS Complaint (2002/95/EC)
