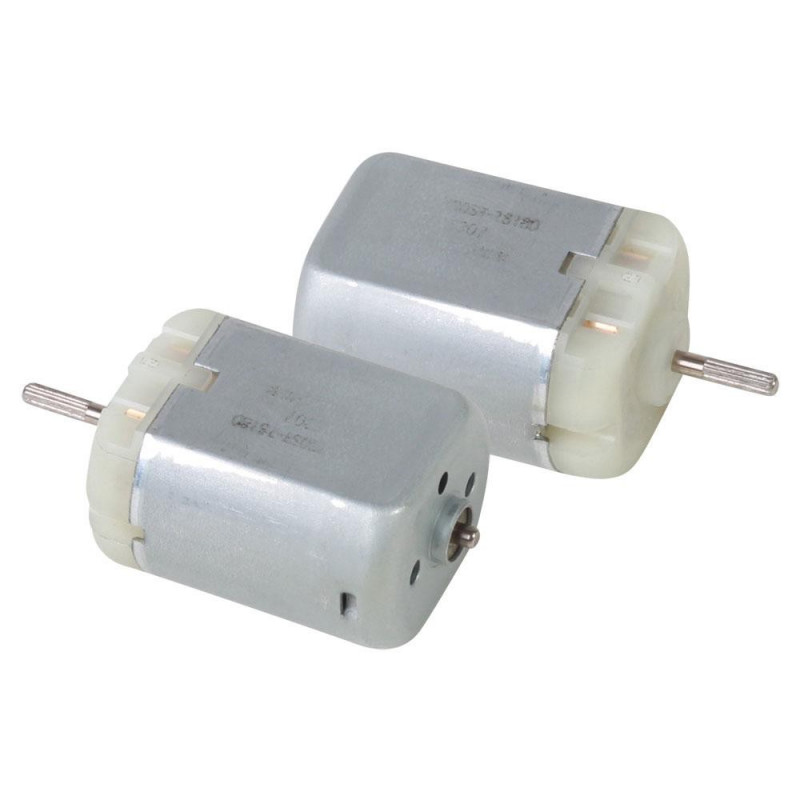

12VDC MABUCHI MOTOR 12500RPM
All pictures are for illustrative purposes only.
  • 12VDC MABUCHI MOTOR 12500RPM

12VDC MABUCHI MOTOR 12500RPM FC280PM-10887A

4541
CA$3.50

12VDC MABUCHI MOTOR 12500RPM. Note: Sold in individual units. Commonly used as automotive door lock actuator in many Japanese model cars, this compact 12VDC motor is suitable for a wide variety of hobby and robotic applications. Push in wire connections, knurled shaft and flat profile allow easy incorporation into any project.

This item has been retired.

OUT OF STOCK Quantity


Commonly used as automotive door lock actuator in many Japanese model cars, this compact 12VDC motor is suitable for a wide variety of hobby and robotic applications. Push in wire connections, knurled shaft and flat profile allow easy incorporation into any project.

Additional Details

  • Speed: 12,500 RPM (no load)
  • Torque: 48.6 g–cm at 12,500 rpm
  • Stall torque: 460 g–cm
  • No load current: 90mA
  • Rated load current: 750mA
  • Nominal voltage: 12 VDC
  • Operating voltage: 8 ~ 16 VDC
  • Weight: 45 grams
  • Shaft dimensions: 11.45mm x 2.0mm (dia)
  • Dimensions: 24.2 mm (dia) x 30.5mm (L)
  • Thickness across flats: 18.3 mm (see attached PDF for detials)
Mabuchi Motor Part #: FK280PM-10887A
