BANANA PI BPI-M2 W/ POWER ADAPTER AND ANTENNA
All pictures are for illustrative purposes only.
  • BANANA PI BPI-M2 W/ POWER ADAPTER AND ANTENNA
  • BANANA PI BPI-M2 W/ POWER ADAPTER AND ANTENNA

BANANA PI BPI-M2 W/ POWER ADAPTER AND ANTENNA

15494
CA$89.00

Banana Pi M2 is the open source hardware platform,Banana PI M2 is an quad core version of Banana Pi ,Banana Pi M2 is the quad core more better than the Banana Pi M1,it support WIFI onboard.

Banana Pi M2 series run Android,Debian linux,Ubuntu linux, Raspberry Pi imange and others imange.

OUT OF STOCK Quantity


What's the BPi-M2?

Banana Pi M2 is the open source hardware platform,Banana PI M2 is an quad core version of Banana Pi ,Banana Pi M2 is the quad core more better than the Banana Pi M1,it support WIFI onboard.

Banana Pi M2 series run Android,Debian linux,Ubuntu linux, Raspberry Pi imange and others imange.

Elastos coordinate multi CUP to from the family cloud entirnment which based on the “software/hardware service”

Banana Pi M2 hardware: 1Ghz ARM7 quad-core processor, 1GB DDR3 SDRAM,

Banana Pi M2 with Gigabit ethernet port, It can run with Android 4.4 smoothly. The size of Banana Pi M2 same as Banana Pi M1, it can easily run with the game it support 1080P high definition video output, the GPIO compatible with Raspberry Pi B+ and can run the ROM Image.

Note: Banana Pi M2 not support sata port, so you need use USB for hardisk



Files Download

DXF file for BPi-M2 download



Specification

Hardware specification

CPU

 A31S ARM Cortex-A7 quad-core,256 KB L1 cache 1 MB L2 cache

GPU

· PowerVR SGX544MP2

· Comply with OpenGL ES 2.0, OpenCL 1.x, DX 9_3

Memory (SDRAM)

1GB DDR3 (shared with GPU)

Onboard Storage

TF card (Max. 64GB) / MMC card slot

Onboard Network

10/100/1000 Ethernet RJ45, WIFI onboard

Video Input

A CSI input connector allows for the connection of a designed camera module

Video Outputs

HDMI, CVBS , LVDS/RGB

Audio Output

3.5 mm Jack and HDMI

Power Source

5 volt via MicroUSB(DC In Only) and/or MicroUSB (OTG)

USB 2.0 Ports

4 USB PORT

Buttons

Reset&Power button

GPIO(2X20) pin

GPIO,UART,I2C bus,SPI bus with two chip selects,

CAN bus,ADC,PWM,+3.3v,+5v,ground.

LED

Power Key & RJ45

Remote

IR (Optional)

OS

Android and Linux etc. OS

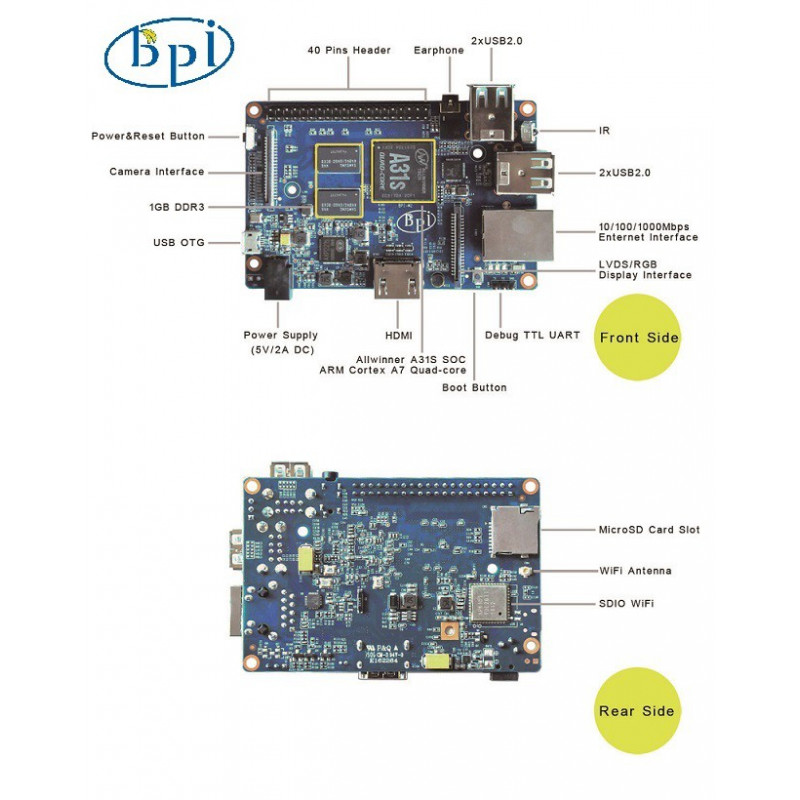

Interface definition

Product size

92 mm × 60mm

Weight

48g

working temperature range

-15~75℃



Interface



 GPIO specification

Banana Pi 40-pin GPIO

Banana Pi has a 40-pin GPIO header that matches that of the Model B+ Raspberry Pi. Following is the Banana Pi GPIO Pinout:

GPIO Pin Name

Pin Definition

IO on A31s

CON7-P01

VCC-3V3



CON7-P02

VCC-DC



CON7-P03

TWI2-SDA

PB19

CON7-P04

VCC-DC



CON7-P05

TWI2-SCK

PB18

CON7-P06

GND



CON7-P07

PWM1-P

PH9

CON7-P08

UART5_TX

PE4

CON7-P09

GND



CON7-P10

UART5_RX

 PE5

CON7-P11

UART2_RX

 PG7

CON7-P12

PWM1-N

PH10

CON7-P13

UART2_TX

PG6

CON7-P14

GND



CON7-P15

UART2_CTS

PG9

CON7-P16

PWM2-P

PH11

CON7-P17

VCC-3V3



CON7-P18

PWM2-N

PH12

CON7-P19

SPI1_MOSI

PG15

CON7-P20

GND



CON7-P21

SPI1_MISO

PG16

CON7-P22

UART2_RTS

PG8

CON7-P23

SPI1_CLK

PG14

CON7-P24

SPI1_CS0

PG13

COn7-P25

GND



CON7-P26

SPI1_CS1

PG12

CON3-P27

TWI3-SDA

PB6

CON7-P28

TWI3-SCK

PB5

CON7-P29

I2S_MCLK

PB0

CON7-P30

GND



CON7-P31

I2S_BCLK

PB1

CON7-P32

I2S_DI

PB7

CON7-P33

I2S_LRCK

PB2

CON7-P34

GND



CON7-P35

I2S_DO0

PB3

CON7-P36

UART5_RTS

PE6

CON7-P37

I2S-D01

PB4

CON7-P38

UART5_CTS

PE7

CON7-P39

GND



CON7-P40

1WIRE PM

PM2



CSI Camera Connector specification:

CSI Camera Connector

The CSI Camera Connector is a 40-pin FPC connector which can connect external camera module with proper signal pin mappings.  The pin definitions of the CSI interface are shown as below. This is marked on the Banana Pi board as “CN6″.

Pin on Board

Pin Definition

IO on A31s

CON6-P01

LINEINL



CON6-P02

LINEINR



CON6-P03

VCC-CSI



CON6-P04

AVDD_CSI



CON6-P05

GND



CON6-P06

VDD_CSI



CON6-P07

MIC2P



  CON6-P08

VCC-CSI



CON6-P09

MIC2N



CON6-P10

AFVCC-CSI



CON6-P11

GND



CON6-P12

CSI-I00

PM0

CON6-P13

LRADC0



CON6-P14

TWI1-SDA

PH15

CON6-P15

MIC-MBIAS



CON6-P16

TWI0-SCK

PH14

CON6-P17

CSI-D4

PE8

CON6-P18

CSI0-STBY-EN

PH27

CON6-P19

CSI-D5

PE9

CON6-P20

CSI-PCLK

PE0

CON6-P21

CSI-D6

PE10

CON6-P22

CSI0-PWR-EN

PG18

CON6-P23

CSI-D7

PE11

CON6-P24

CSI-MCLK

PE1

CON6-P25

CSI-D8

PE12

CON6-P26

CSI0-RESET#

PH26

CON6-P27

CSI-D9

PE13

CON6-P28

CSI-VSYNC

PE3

CON6-P29

CSI-D10

PE14

CON6-P30

CSI-HSYNC

PE2

CON6-P31

CSI-D11

PE15

CON6-P32

CSI1-STBY-EN

PH25

CON6-P33

AP-RESET#



CON6-P34

CSI1-RESET#

PH24

CON6-P35

CSI-IO1

PM1

CON6-P36

HPR



CON6-P37

HPL



CON6-P38

IPSOUT



CON6-P39

GND



CON6-P40

IPSOUT



LVDS specification

LVDS (LCD display interface)

The LVDS Connector is a 40-pin FPC connector which can connect external LCD panel (LVDS) and touch screen (I2C) module as well.  The pin definitions of this connector are shown as below. This is marked on the Banana Pi board as “CN9″.

Pin on Board

Pin Definition

IO on A31s

CON9-P01

IPSOUT



CON9-P02

TWI1-SDA

PH15

CON9-P03

IPSOUT



CON9-P04

TWI1-SCK

PH16

CON9-P05

GND



CON9-P06

TP-INT

PG0

CON9-P07

LCD-PWR-EN

PG4

  CON9-P08

TP-RST

PG1

CON9-P09

LCD0-D00

PD0

CON9-P10

LCD0-PWM

PH13

CON9-P11

LCD0-D01

PD1

CON9-P12

LCD0-BL-EN

PG3

CON9-P13

LCD0-D02

PD2

CON9-P14

LCD0-DE

PD25

CON9-P15

LCD0-D3

PD3

CON9-P16

LCD0-VSYNC

PD27

CON9-P17

LCD0-D4

 PD4

CON9-P18

LCD0-HSYNC

PD26

CON9-P19

LCD0-D5

PD5

CON9-P20

LCD0-CS

PG2

CON9-P21

LCD0-D06

PD6

CON9-P22

LCD0-CLK

PD24

CON9-P23

LCD0-D07

PD7

CON9-P24

GND



CON9-P25

LCD0-D08

PD8

CON9-P26

LCD0-D23

PD23

CON9-P27

LCD0-D09

PD9

CON9-P28

LCD0-D22

PD22

CON9-P29

LCD0-D10

PD10

CON9-P30

LCD0-D21

PD21

CON9-P31

LCD0-D11

PD11

CON9-P32

LCD0-D20

PD20

CON9-P33

LCD0-D12

PD12

CON9-P34

LCD0-D19

PD19

CON9-P35

LCD0-D13

PD13

CON9-P36

LCD0-D18

PD18

CON9-P37

LCD0-D14

PD14

CON9-P38

LCD0-D17

PD17

CON9-P39

LCD0-D15

PD15

CON9-P40

LCD0-D16

PD16

 UART specification:

The header CON8 is the UART interface.  For developers of Banana Pi, this is an easy way to get the UART console output to check the system status and log message.

CON8 Pin Name

Default Function

GPIO

CON8 PO3

UART0-TXD

PH20

CON8 PO2

UART0-RXD

PH21

CON8 PO1

GND
